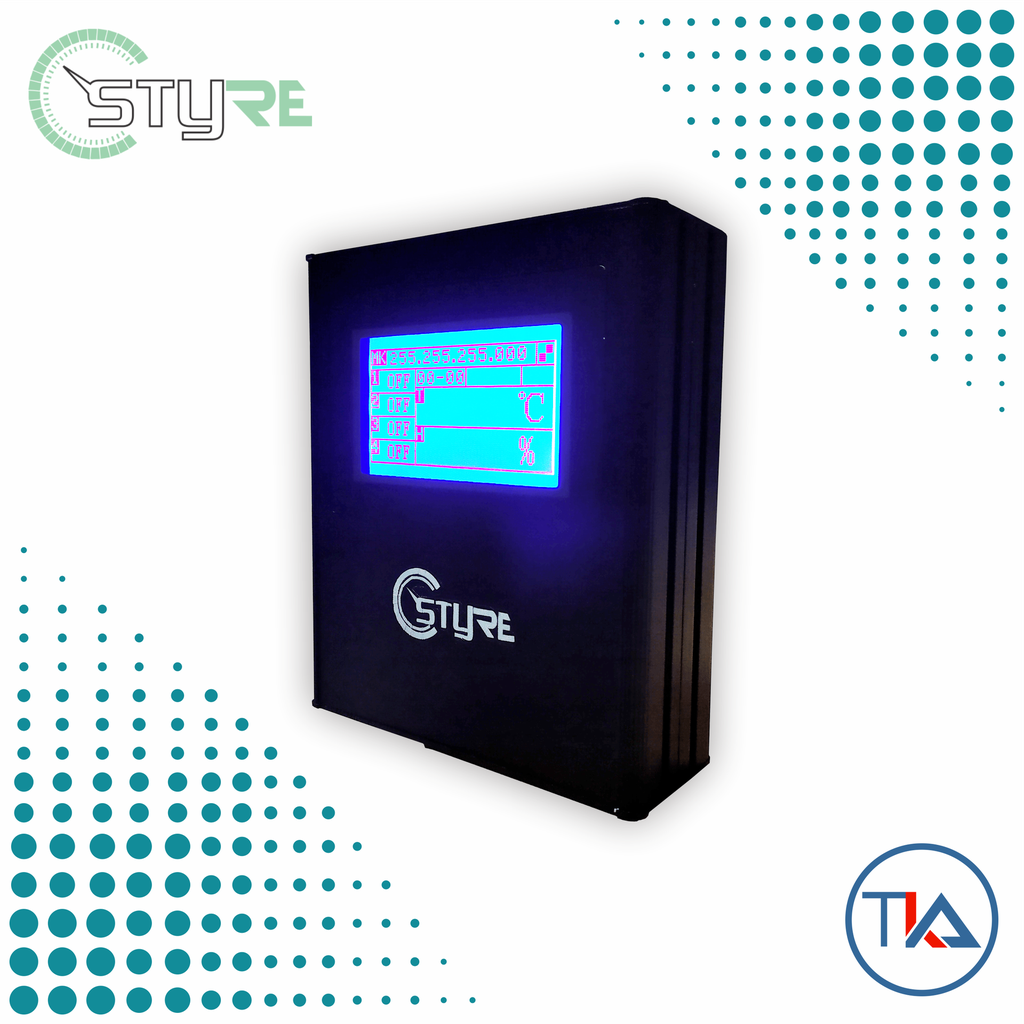

STYRE Gateway for Sensor Environment
Can be connected to multiple temperature and humidity sensor probes or can be connected to multiple temperature probes. The device comes with a liquid crystal display, which is convenient for users to view on site. The device has a 1-way 485 serial port, which can be used to convert the RS485 serial port to Ethernet. Open communication protocol.
Features:
- Photoelectric isolation, anti-electromagnetic interference
- RJ45 network port output, support TCP / UDP / SNMP protocol
- 4-channel switching value acquisition, can access a variety of sensor signals such as temperature-humidity, smoke and water leakage
- 1 way RS485 serial port, support RS485 to Ethernet
- The large-screen multi-measurement parameter real-time display is convenient for users to read directly
Network Interface : RJ45, 10M/100M adaptive,
Protocol : TCP, UDP, SNMP, ARP, DHCP, and other network protocols
Conversion Port Mode : RS485 serial device, RS485 to Ethernet
Shell Panel : Alumunium Alloy, PCB single side; Shell Size : 42 * 121 * 141 mm; LCD Size : 70 * 38 mm; Weight About : 600 grams
Enclosure Rating : IP65; Installation Method : Wall surface - screwed / wall mounted
