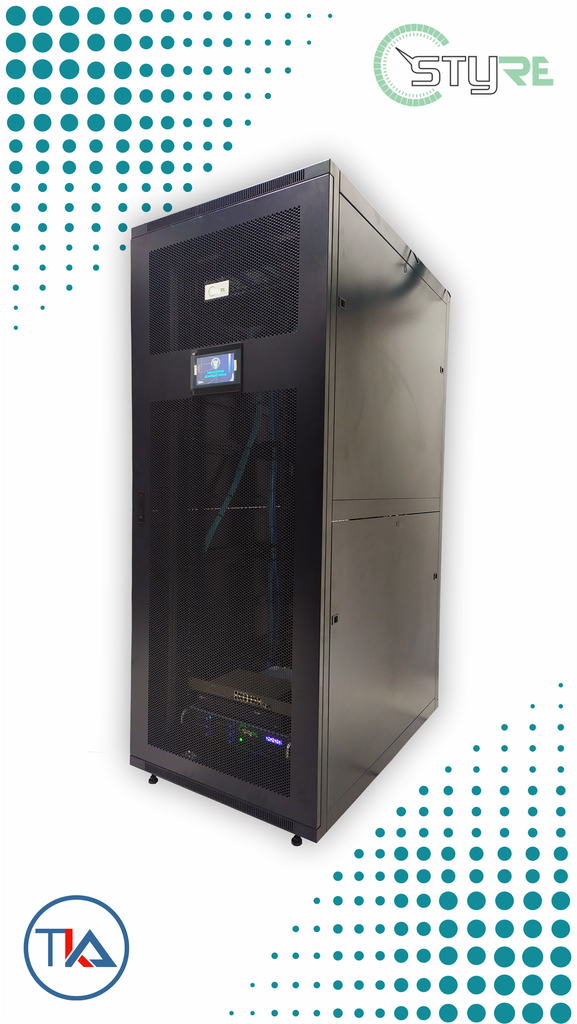

Perforated Front Door, Steel Rear Door, 2 Side Door With Lock. 1 Vertical Power Distribution Unit 12 Outlet Germany Socket, 16 Ampere with Surge Protection, Cable 3m, SNI. 2 Pcs Bracket. Modular with 2 Fan. 1 Pcs Fixed Shelf. 4 Pcs Adjustable Foot. 4 Pcs Castors. 2 Pcs Cable Ring. 1 Pcs Brush Panel. 100 Set Cagenuts & Screws

Processor: Up to Intel Xeon E5-2650 V3 10 Core 20 Threads, Motherboard: Up to Intel C612 Chipset E5-2600 V3 Dual Processor Server Motherboard, Memory: 8 * DIMM Server ECC RAM DDR4-2400MHz, 64GB, Storage Capacity: 2 * 2.5” SAS 1TB 7200rpm and 1 * 2.5” SSD 512GB

Display Up to 10.1”TFT LCD, Resolution(WxH) Up to 1024x60, Backlight : LED, LCD life : 50000 Hours, Touch Panel : 4 wires resistive touch screen (Surface hardness 4H), CPU : 600MHz ARM Cortex-A8, Memory : 128M Flash+ 128M DDR3, Power Consumtion : < 10W, Input Power : DC24V, working range DC 9V~28V

STYRE IPDU diciptakan untuk memenuhi standar pemantauan Pusat Data terbaru yang meliputi teknologi komunikasi real time, distribusi daya ke meteran listrik dan sensor lingkungan yang selalu terhubung.

Fitur:
- Pemantauan Listrik - Pemantauan waktu nyata untuk daya dan listrik di setiap soket keluaran dengan baik secara individu atau keseluruhan.
- Stand by Sensor - Suhu, kelembapan, asap, dan pintu rak server.
- Output Fleksibel - Soket Ouput dapat digunakan sesuai kebutuhan klien.

Rated input voltage : 380 V ~ 50/60Hz, Input terminal type : IEC60309 32A PLUG, Cable specification : 3G x 6 mm2, Cable length : 2 m The max input current : 32 A, Socket IEC60320/ (C13, C14, C19, C20, SCHUKO, Universal),
Accessing Method : Web based, SNMP (V1/V2C/V3), Telnet, Radius
Central Management : Sensor Management Authority, Device Management Authority, User Management Authority, Log Management Authority

Realtime Monitoring
Total : Total load current, Power Factor, Set total voltage threshold
Output : Output current, Clear output power (kWh)
Sensor : Temperature and Humidity state
Device : Local alarm, LCD Display, Set the work node
Network : IPV4, HTTP/HTTPS, SMTP, ModBus, Wifi Ready, Daisy Chain Ready

Can be connected to multiple temperature and humidity sensor probes or can be connected to multiple temperature probes. The device comes with a liquid crystal display, which is convenient for users to view on site. The device has a 1-way 485 serial port, which can be used to convert the RS485 serial port to Ethernet. Open communication protocol.

Fitur:
- Isolasi fotolistrik, interferensi anti-elektromagnetik.
- Port keluaran jaringan RJ45, mendukung protokol TCP / UDP / SNMP.
- Akuisisi nilai switching 4 saluran, dapat mengakses berbagai sinyal sensor seperti suhu-kelembaban, asap dan kebocoran air.
- Port serial RS485 satu arah, mendukung RS485 ke Ethernet.
- Tampilan real-time parameter multi-ukuran layar besar nyaman bagi pengguna untuk membaca secara langsung.

DC Power Supply : DC 10-30V; Maximum Power Consumtion : 0.5W (24V DC Power Supply);
Detection Parameters : Temperature, humidity, PM2.5, PM10, air pressure, light, TVOC, CO2, formaldehyde, O3, CO, CH4, O2, SO2, NO2, H2, H2S, NH3;
Signal Output : RS485 Output (Standard Modbus-RTU Protocol); Product Material : ABS; Installation method : Wall Hanging, Ceiling

Stroke :
Standart Integrated : 5m,8m,10m,12m,15m,20m,25m,30m
Mini Integrated : 1m,2m
Separeted : 5m,8m,10m,12m,15m,20m,25m,30m

Power Supply : DC12—24V or AC220V; Power: <1.5W; Enclosure Rating Whole: IP65 or IP66/67,Sensor IP68;

Output:
Current: 4~20mA,0~20 mA; Voltage: 0~5V,0~10V

Fitur:
- IEEE 802.3af/di hidupkan hingga 24 port.
- Port POE hingga 24*10/100M + 2*Uplink Gigabit+1 port SFP.
- Mendukung daya PoE hingga 15,4W/30W untuk setiap port PoE.
- Mendukung kontrol aliran IEEE 802.3x untuk Mode Full-duplex dan backpressure untuk Mode Half-duplex.
- Tabel alamat MAC entri 16K dari PoE Switch OTA-STY-P24E-2EH dengan pembelajaran otomatis.

Main Processor : ARM9; Memory : 128MB RAM + 32MB Flash; RJ45 : 10/100Mbps; Attendance Mode : Fixed / Flexible; Power Supply : 9-15DC / 200mA; Relay Mode : Door Control / External Bell;
Fingerprint : 3.000; User : 1.000; Record : 150.000

Image Sensor : 1/3” 4Megapixel progressive CMOS; Effective Pixels : 2688(H) x1520(V); S/N Ratio : More than 50dB; IR Distance : Distance up to 30m(98ft); RAM/ROM : 512MB/32MB; Power Supply : DC12V PoE (IEEE802.3af)(Class 0); Power Consumption : <9W(-ZS), <7W(-VFS); Ingress Protection : IP67

Chassis : Up to 4U Rackmount Chassis (26-inch deep, 24 x hot-swap drive bays, Redudance Power; Dimensions : 26" (D) x 19" (W) x 7" (H); Processor Up to 4-Core 3.90 GHz – 8 MB Cache, 8 CPU Threads – Intel Xeon E3-1280v6; Memory : Up to 4 x 288-pin DDR4 DIMM slots, Up to 64GB; Storage Up to 3.84TB SSD – Endurance: 22.0 PBW – Intel® D3-S4610, Enterprise Up to 18TB HDD- 512e, 2.5M hrs MTBF – Enterprise-class

Chassis :
Form Factor : 19” Rackmount; Size (L*W*H) : Up to L402*W430*H198mm;
CPU : Up to Integrated Intel® Celeron® 2950M 2.0GHz Dual Core Processor; System Chipset: Up to HM86 high-speed chipset; Graphic Display : Up to Integrated AMD Radeon HD 7500G Graphics Chips, 1*HDMI1.4 Port; Memory: Up to 1*SODIMM 1600MHz RAM Slot, Up to 8GB; PCIE: Up to 8* PCIE X16 Slots, each slot gap is 55mm; GPU Type : RX 5700 XT, RTX 3070, RTX 3060; Wattage : Default with 1800; Voltage input : 200V~240V AC

CPU: Up to Intel® Xeon® processor E5-2600 v3/v4; Chipset: Up to Intel® C612 RAM: Up to 1 TB; Lan Ports: 4*Gbe LANs; SSD: 2*2.5” SSD Bays (hotswap Option); Power Supply: 1U 1+1 Redundant Power Supply 450W

Power Supply: AC220V/50Hz; Cooling Capacity: Up to 3000W@L35/L35; Internal Airflow: 400m3/h; Refrigerant: R410A; Max Noise Level: 65dB(A); IP Grade: IPX5; Net Weight: Up to 50 kg; Dimensions (H*W*D): Up to 42U*800mm*1200mm;

Power supply : 10 ~ 30V DC; Power consumption : 0.4W; Installation : Ceiling; Mounting height : 2.5 ~ 6m; Signal Output : RS485 (Modbus-RTU)

CPU : MT7620A+7612E; RAM 64Mbyte, FM 8Mbyte; Interface : 10/100Mbps LAN*2;
Data Rate :
11a:54M, 48M, 36M, 24M, 18M, 12M, 9M,6Mbps
11n:7.2M, 14.4M, 21.7M, 28.9M, 43,3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86,7M, 115.6M, 130M, 144.4Mbps 433Mbps
Wireless Standard : IEEE802.11ac IEEE802.11n,IEEE802.11a, IEEE802.3u;
Protocol : CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5;
Frequency : 4900~6100MHz;
Power Consumption : ≤3W;
Power : POW 24V 1A (Default)/POE 48V 0.5A (Optional);

Main Processor : Quad-core embedded processor; Operating System : Embedded LINUX; Interface : 1 HDMI (up to 3840 x 2160), 1 VGA;
OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording;
Record Mode : Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop;
Record Interval 1 ~ 120 min (default: 60 min), Pre-record : 1 ~ 30 sec, Post-record : 1 ~ 300 sec;
Interface : 1 RJ-45 Port (10/100/1000Mbps);
Network Function : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP Camera, DVR, NVS, etc);
Power Supply : Single, AC100V ~ 240V, 50 ~ 60 Hz

Working Voltage : 5V DC; Power Consumption : About 1.0W; Connector : RJ 11; Cable Length : Customizable (Max 1.25m)

Rated input-output voltage : 110/220V 50/60Hz;
Total Voltage :
Full scale:300V Accuracy:±1﹪ +2 character; resolution ratio:0.1V Response Time:400ms;
Total Current :
Full scale:32A Accuracy: ±1﹪ +1 character; resolution ratio:0.1A Response Time:400ms;
Installation Methods: Horizontal fixed installation;
Access Method : WEB access control through IE, SNMP (V1) via standard network management workstation access control, Telnet command line
